"Using laser profilometry in 30" we see every defect of the tire."



In the tire production process, one of the most sensitive stages is the control operated on every single item that no defects have occurred during the production process, before it will be sent on the market.
Technologies have integrated methodologies and advanced tools to achieve more efficient and reliable controls, but there are still some parts of this process that are conducted manually by specialized workers. Automate these operations would give a great competitive advantage, considering the impact of the cost of qualified workforce and the need of objectivity in all the control phases.

VISION TIRE SYSTEM 3D - DEFECT DETECTION

Vision Tire System 3D is an innovative three-dimensional vision system to detect any defect that occurred on the tire. Reconstructing a 3D model of the tire in all its areas and operating specialized algorithms for every different sector, Vision Tire System 3D can detect and classify automatically every kind of defect that can be occured on the tire during the production process (bubble, scratch, bladder, cut, scuffing, foreign body etc), with an high efficiency and a remarkable saving in terms of time and costs.



Defects

VISION TIRE SYSTEM 3D - DEFECT DETECTION

Uses the LASER PROFILOMETRY, a technique based on the triangulation between a laser and a camera that let the system have a three-dimensional reconstruction of the whole tire with one of the highest possible resolution in a very short cycle time.

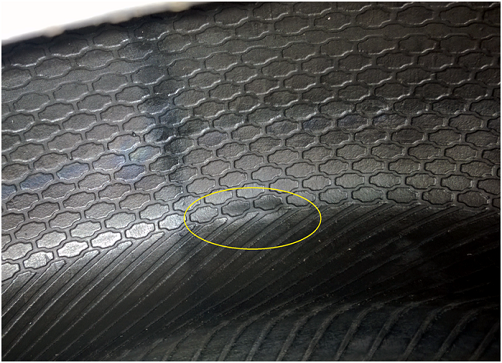

Bubble on a patterned inside

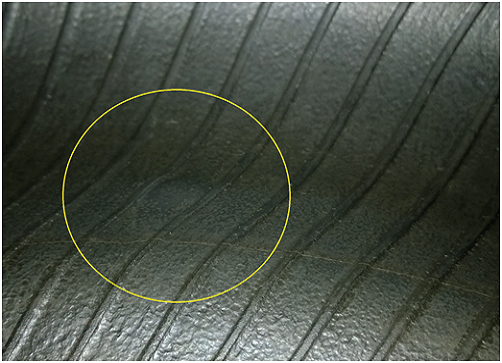

Inside bubble
Inside perimetral cut


VISION TIRE SYSTEM 3D - DEFECT DETECTION

Has six laser-camera tools that allows the system to inspect all the different areas of the tire. These vision units are mounted on a robotic arm that operates a preset depending on the tire that has to inspect and is able to scan every millimeter of it, in the inside and outside. The software of control takes in charge all the acquired data and detects whenever some defects have occurred during the production process, giving the result in a quasi real time.

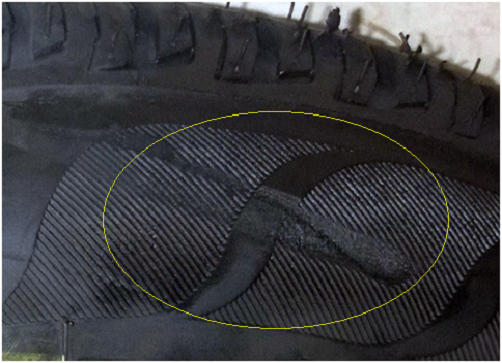

Sidewall scratch

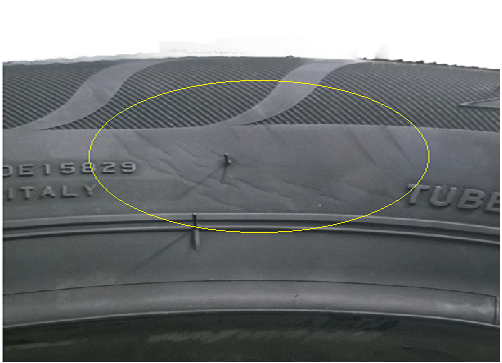

Structural ondulations

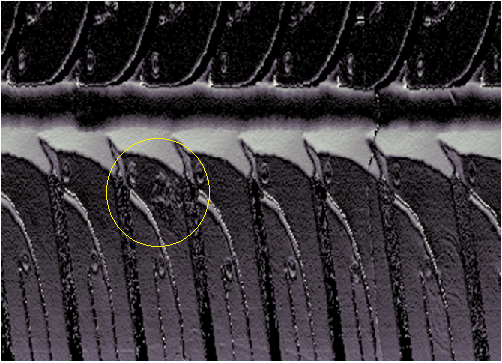

Tread scuffing
